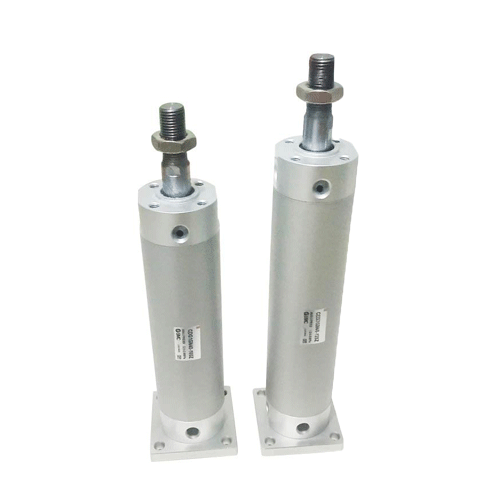

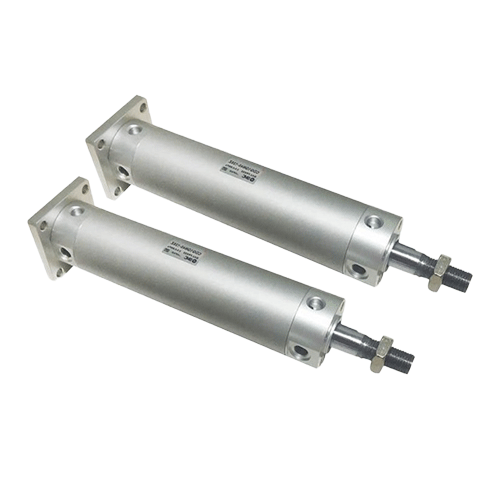

CDG1GN80 Rodless side flange type standard cylinder

Click to learn more！ Browse:
Download: SMC standard cylinder CDG1BN, CDG1ZN, CDG1LN, CDG1FN, CDG1GN, CDG1UN, CDG1TN, CDG1DN data parameter selection manual
Product introduction：1. Standardization of internal threads at rod ends 2. The operability of the magnetic switch is improved and the position is easy to adjust. 3. A screw hole type without trunnion for installation is added to the basic model. 4. The models of rod end mounting parts and swing base mounting parts are set (saving time of ordering cylinders and mounting parts separately) 5. With magnetic switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R, CDG1KR, CDBG1)
